Details

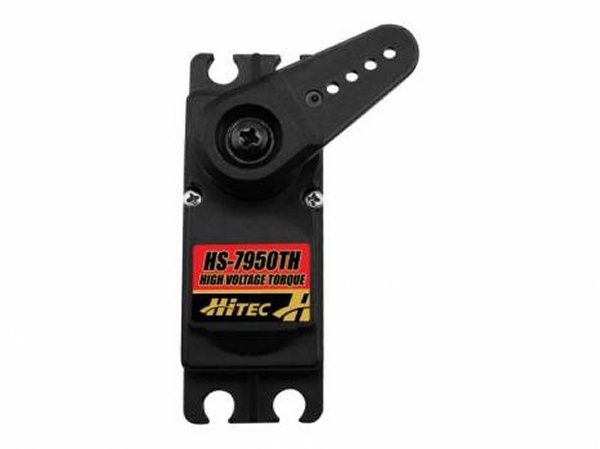

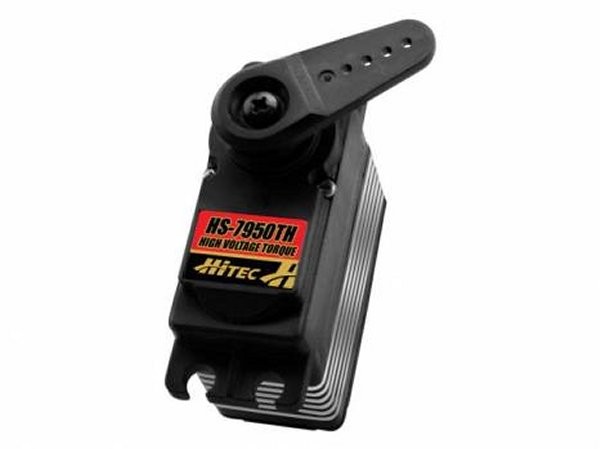

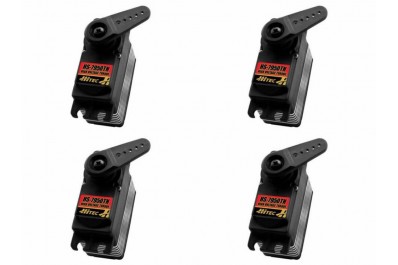

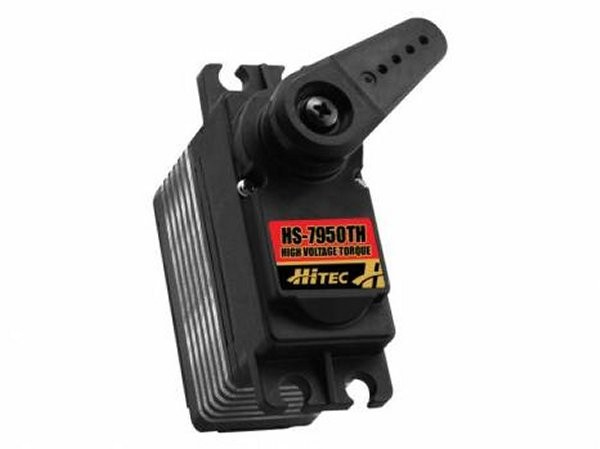

Hitec's strongest servo period, the "Ultra Torque" HS-7950TH is designed to operate on a two cell LiPo Pack. Featuring our high resolution "G2" second generation programmable digital circuit and our indestructible Titanium gears, the HS-7950TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7950TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.
The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403 oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time.
Additional Information
| Motor Type | Coreless |
|---|---|
| Bearing Type | Dual Ball Bearing |
| Speed (6.0V/7.4V) | 0.15 / 0.13 |
| Torque oz./in. (6.0V/7.4V) | 403 / 486 |
| Torque kg./cm. (6.0V/7.4V) | 29.0 / 35.0 |
| Size in Inches | 1.57 x 0.79 x 1.50 |
| Size in Millimeters | 39.88 x 20.07 x 38.10 |
| Weight oz. | 2.40 |
| Weight g. | 68.04 |
