Details

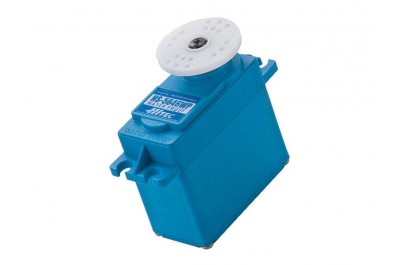

Our waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, our digital waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the HS-5646WP will dependably keep your mind at ease.
Additional Information
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
|---|---|
| Speed (Second @ 60°) | 0.20 ~ 0.18 |
| Maximum Torque Range oz. / in. | 157 ~ 179 |
| Maximum Torque Range kg. / cm. | 11.3 ~ 12.9 |
| Current Draw at Idle | 4.5 mA |
| No Load Operating Current Draw | 330 mA |
| Stall Current Draw | 2,100 mA |
| Dead Band Width | 4 µs |

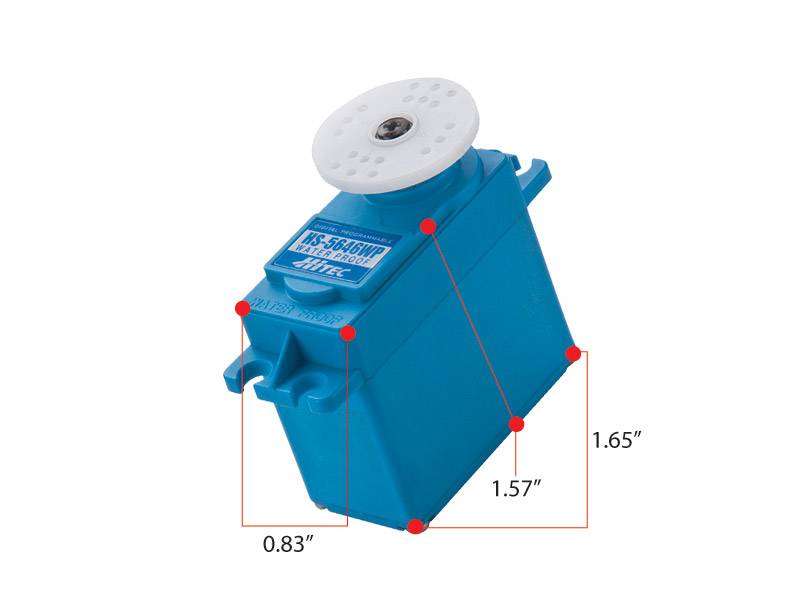

| Dimensions (Inches) | 1.65 x 0.83 x 1.57 |
| Dimensions (Metric) | 41.8 x 21.0 x 40.0 |
| Weight (Ounces) | 2.15 |
| Weight (Gram) | 61.0 |
| Circuit Type | G1 Programable Digital |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | IP 67 |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
