Details

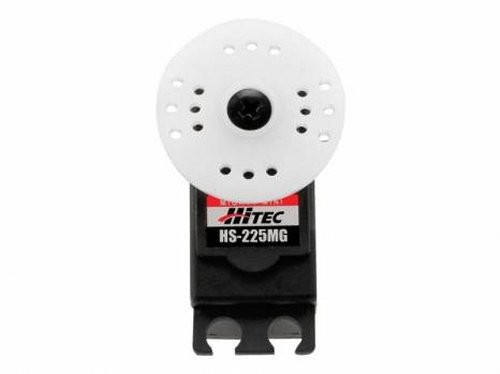

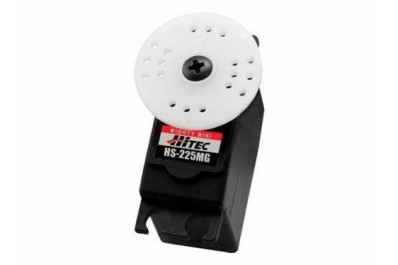

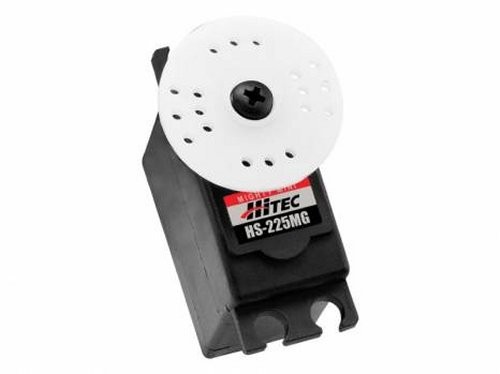

The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.
Additional Information
| Motor Type | 3 Pole |
|---|---|
| Bearing Type | Top Ball Bearing |
| Speed (4.8V/6.0V) | 0.14 x 0.11 sec @ 60 deg. |
| Torque oz./in. (4.8V/6.0V) | 54 / 67 |
| Torque kg./cm. (4.8V/6.0V) | 3.9 / 4.8 |

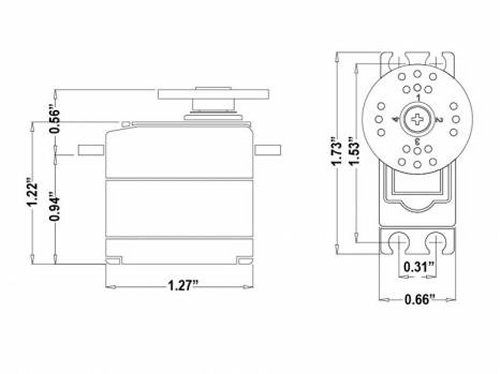

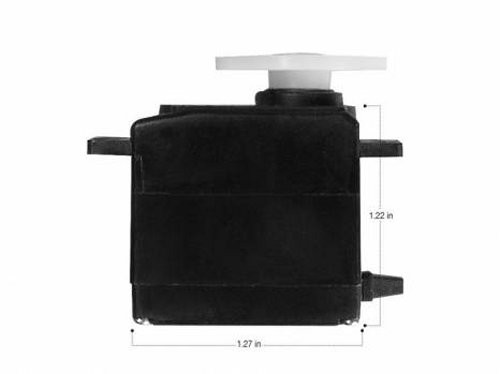

| Size in Inches | 1.27 x 0.66 x 1.22 |
| Size in Millimeters | 32.26 x 16.76 x 31.00 |
| Weight ounces | 1.10 |
| Weight grams | 27.94 |
