Details
The HS-425BB is offered with dual ball bearings, impact resin gears and high performance circuitry. As one of our longest running production servos, it has proven to be a durable and dependable product year after year.
Additional Information
| Motor Type | 3 Pole |
|---|---|
| Bearing Type | Dual Ball Bearing |
| Speed (4.8V/6.0V) | 0.21 / 0.16 sec @ 60 deg. |
| Torque oz./in. (4.8V/6.0V) | 46 / 57 |
| Torque kg./cm. (4.8V/6.0V) | 3.3 / 4.1 |

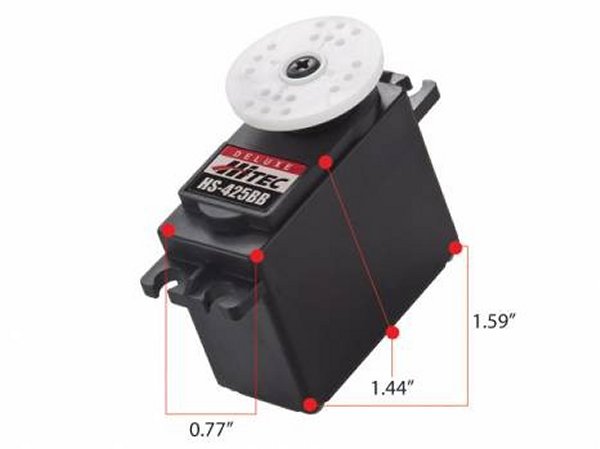

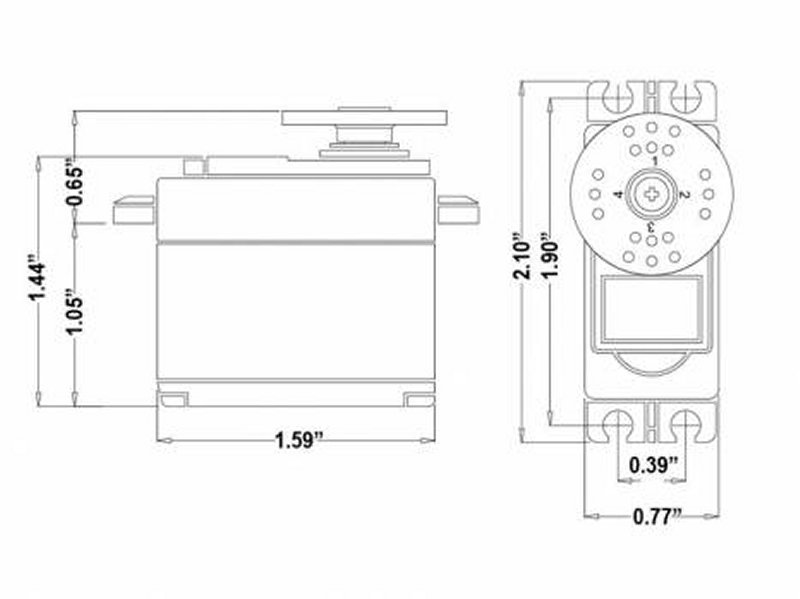

| Size in Inches | 1.59 x 0.77 x 1.44 |
| Size in Millimeters | 40.39 x 19.56 x 36.58 |
| Weight ounces | 1.60 |
| Weight grams | 45.36 |
