Details

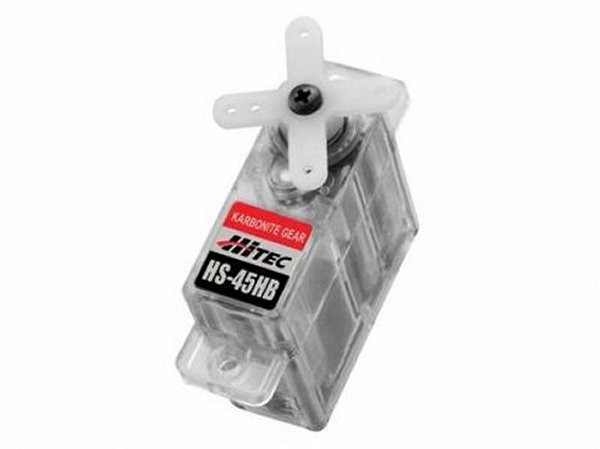

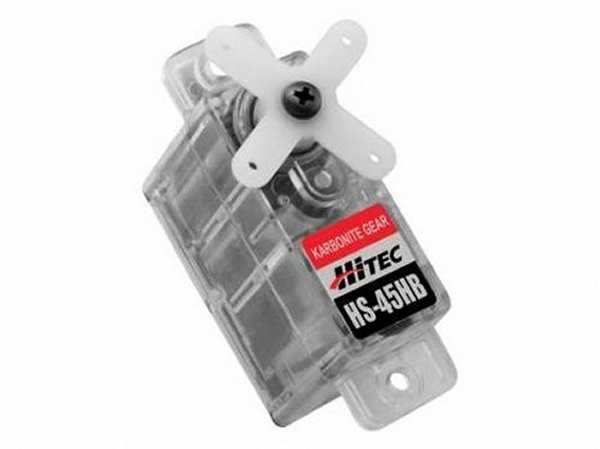

Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.
Additional Information
| Motor Type | 3 Pole |
|---|---|
| Bearing Type | Top Ball Bearing |
| Speed (4.8V/6.0V) | 0.14 / 0.12 sec @ 60 deg. |
| Torque oz./in. (4.8V/6.0V) | 14 / 17 |
| Torque kg./cm. (4.8V/6.0V) | 1.0 / 1.2 |

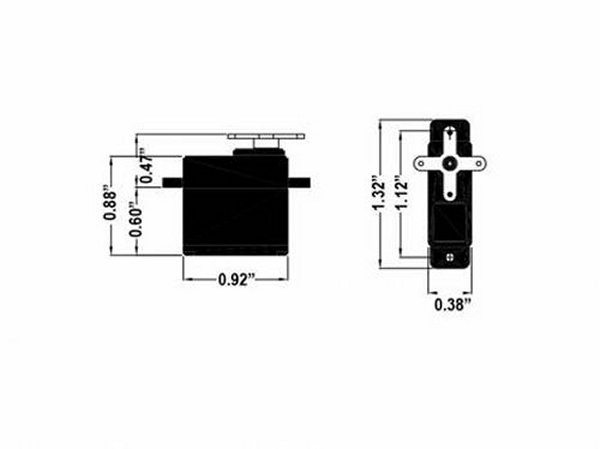

| Size in Inches | 0.92 x 0.38 x 0.88 |
| Size in Millimeters | 23.37 x 9.65 x 22.35 |
| Weight ounces | 0.28 |
| Weight grams | 7.94 |
| Control System | +Pulse Width Control 1500usec Neutral |
| Operating Voltage Range | 4.8V - 6V |
| Operating Temperature Range | -20°C to +60°C (-4°F to +140°F) |
| Idle Current | 8mA |
| No Load Running Current (4.8V/6.0V) | 100mA/60° |
| Stall Current (4.8V/6.0V) | 440mA |
| Dead Band Width | 5usec |
| Potentiometer Type | 2 Slider/Direct Drive |
| Connector Wire Length | 250mm (9.84 in) |
| Connector Wire Gauge | 28AWG |
