Details

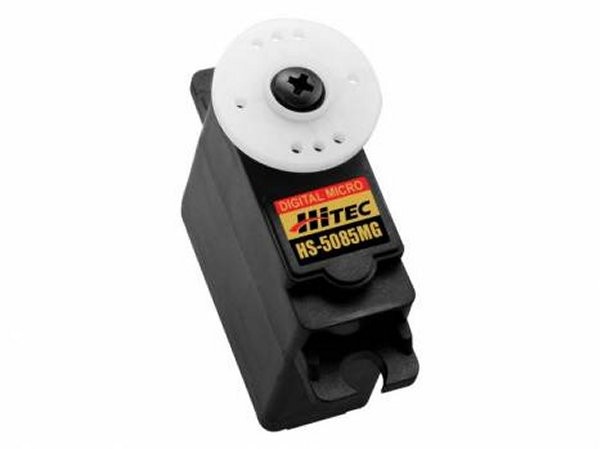

A digital version of one of Hitec’s most popular mini servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, heli’s, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.
Additional Information
| Motor Type | 3 Pole |
|---|---|
| Bearing Type | Top Ball Bearing |
| Speed (4.8V/6.0V) | 0.17 / 0.13 |
| Torque oz./in. (4.8V/6.0V) | 50 / 60 |
| Torque kg./cm. (4.8V/6.0V) | 3.6 / 4.3 |

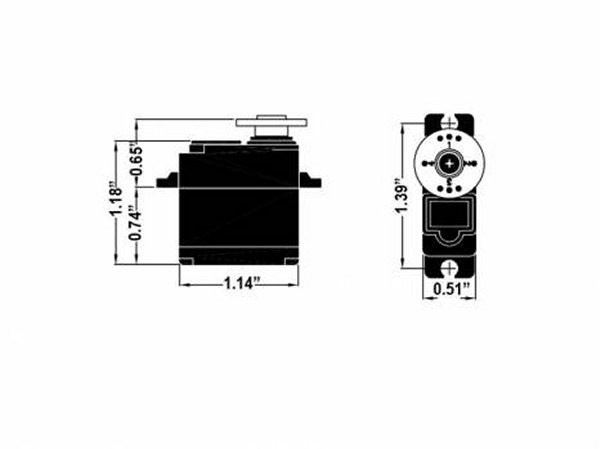

| Size in Inches | 1.14 x 0.51 x 1.18 |
| Size in Millimeters | 28.96 x 12.95 x 29.97 |
| Weight ounces | 0.77 |
| Weight grams | 21.83 |
| Control System | +Pulse Width Control 1500usec Neutral |
| Operating Voltage Range | 4.8V to 6.0V |
| Operating Temperature Range | -20° to +60° (-4°F to +140°F) |
| Idle Current | 3mA |
| No Load Running Current (4.8V/6.0V) | 230mA/60° / 290mA/60° |
| Stall Current (4.8V/6.0V) | 1,700mA / 2,150mA |
| Dead Band Width | 2usec |
| Potentiometer Type | 2 Slider/Direct Drive |
| Connector Wire Length | 250mm (9.84in) |
| Connector Wire Gauge | 28AWG |
