Details

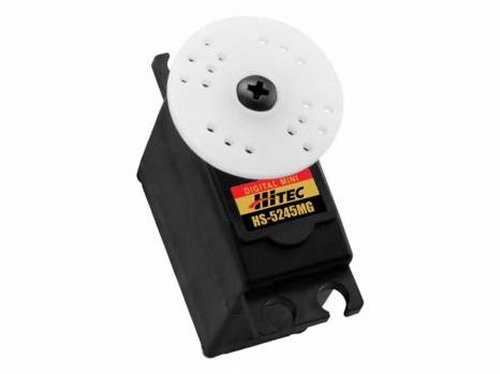

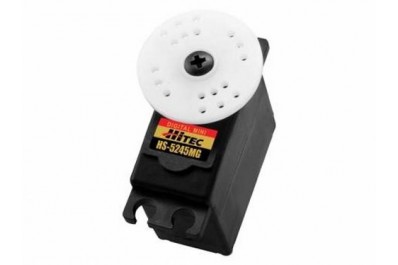

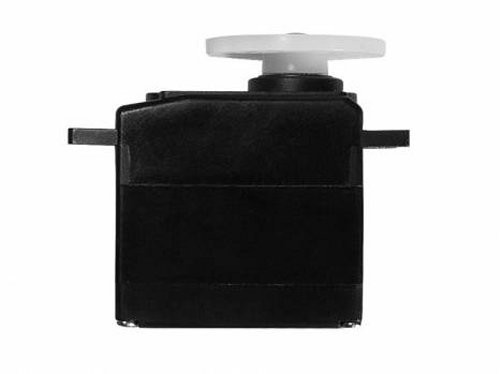

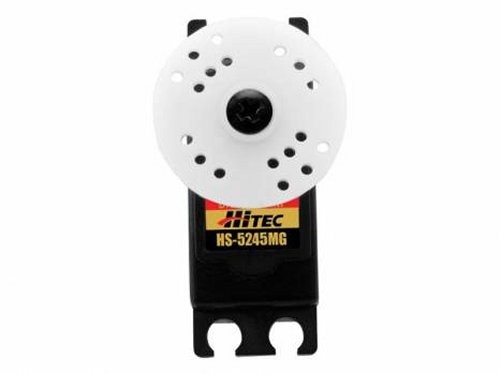

With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.
Additional Information
| Motor Type | 3 Pole |
|---|---|
| Bearing Type | Dual Ball Bearing |
| Speed (4.8V/6.0V) | 0.15 / 0.12 |
| Torque oz./in. (4.8V/6.0V) | 61 / 76 |
| Torque kg./cm. (4.8V/6.0V) | 4.4 / 5.5 |

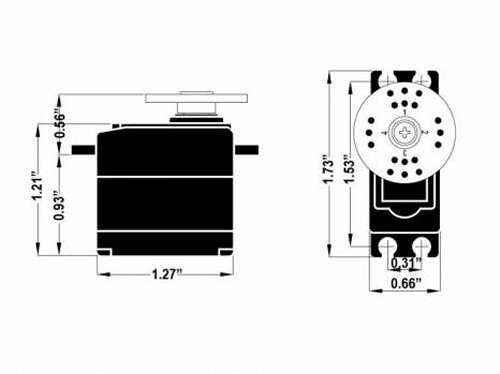

| Size in Inches | 1.27 x 0.66 x 1.21 |
| Size in Millimeters | 32.26 x 16.76 x 30.73 |
| Weight ounces | 1.12 |
| Weight grams | 31.75 |
