Details

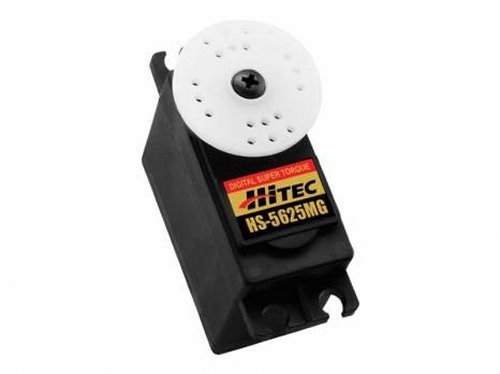

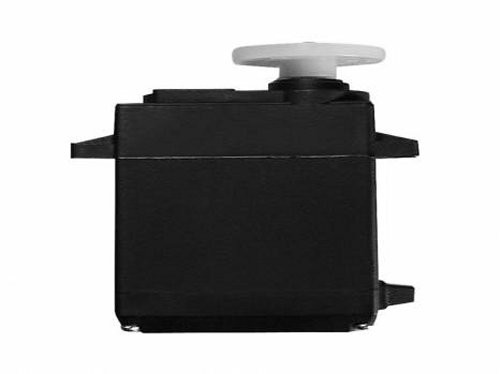

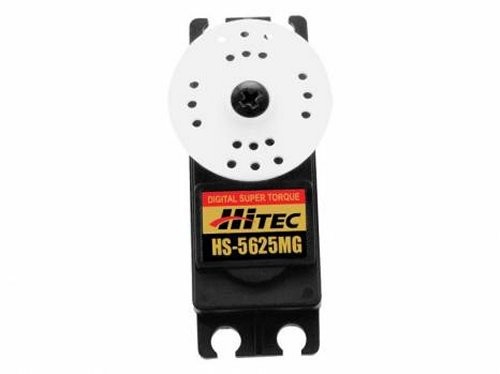

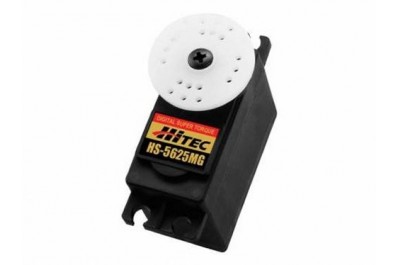

For those applications that require a fast standard size servo, the HS-5625MG is an excellent choice. With a custom designed programmable digital circuit and our unique M/P and metal gear train technology, the HS-5645MG will deliver powerful high speed results!
Note: Metal Horn (R-ML) Included
Additional Information
| Motor Type | 3 Pole Ferrite |
|---|---|
| Bearing Type | Dual Ball Bearing |
| Speed (4.8V/6.0V) | 0.17 / 0.14 |
| Torque oz./in. (4.8V/6.0V) | 110 / 131 |
| Torque kg./cm. (4.8V/6.0V) | 7.9 / 9.4 |

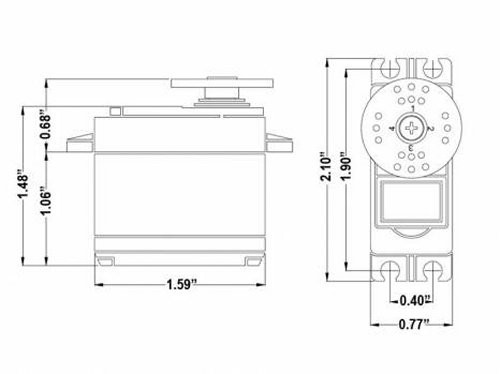

| Size in Inches | 1.59 x 0.77 x 1.48 |
| Size in Millimeters | 40.39 x 19.56 x 37.59 |
| Weight ounces | 2.11 |
| Weight grams | 59.82 |
