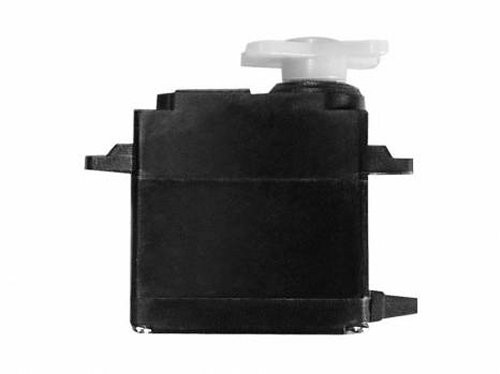

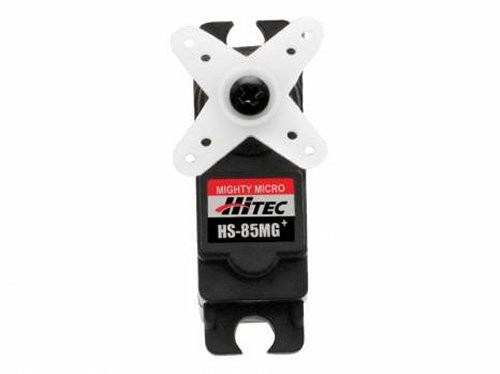

The HS-85MG features a high power motor for greater speed and torque. The HS-85MG is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sail planes.
Additional Information
| Motor Type | 3 Pole |
|---|---|
| Bearing Type | Top Ball Bearing |
| Speed (4.8V/6.0V) | 0.16 / 0.14 sec @ 60 deg. |
| Torque oz./in. (4.8V/6.0V) | 42 / 49 |
| Torque kg./cm. (4.8V/6.0V) | 3.0 / 3.5 |

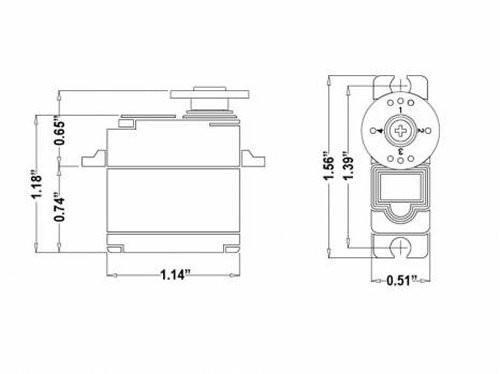

| Size in Inches | 1.14 x 0.51 x 1.18 |
| Size in Millimeters | 28.96 x 12.95 x 29.97 |
| Weight ounces | 0.77 |
| Weight grams | 21.83 |
